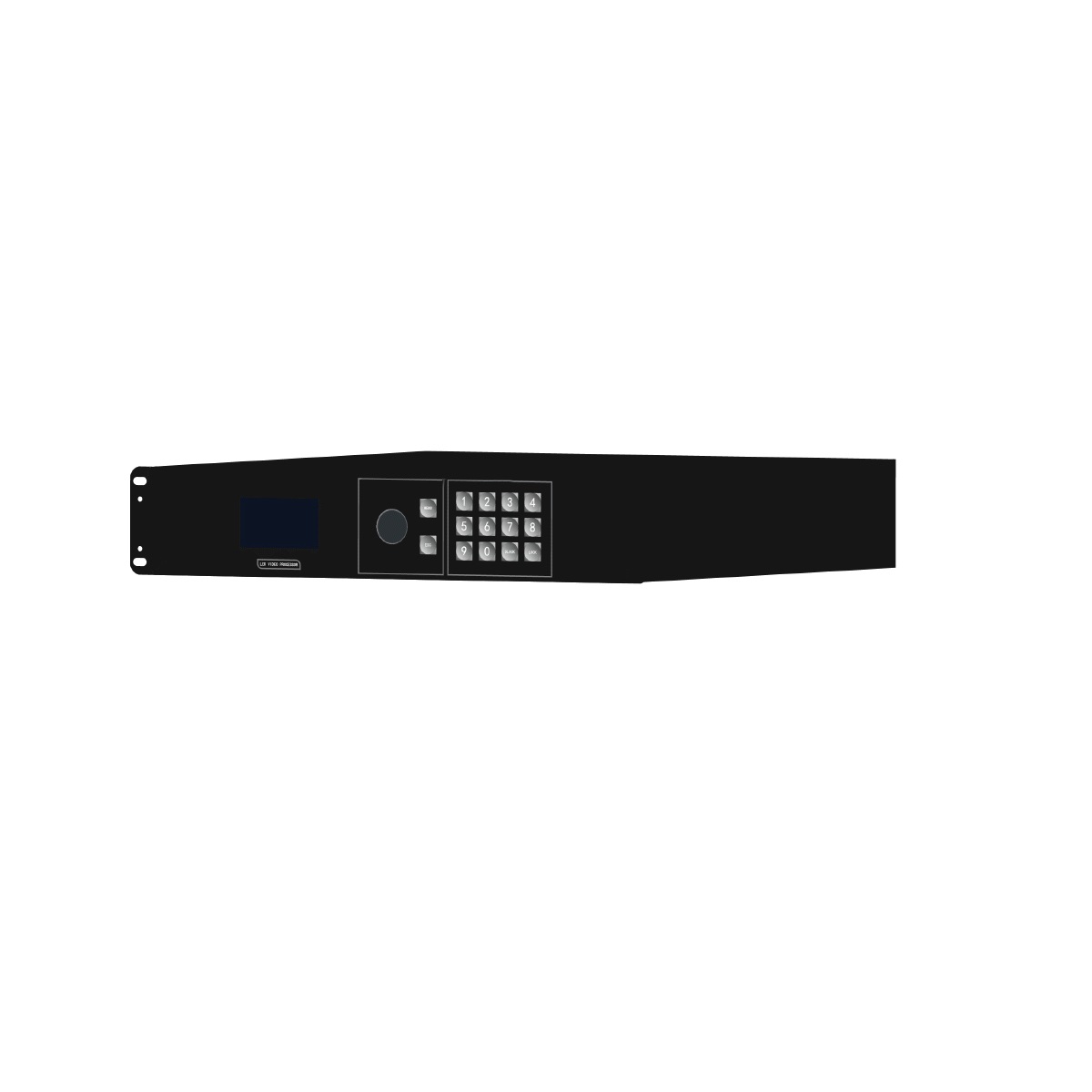

VWC-8400

VWC-8400 series LED video processors support CVBS, VGA, DVI, HDMI, HDMI1.4, HDMI2.0, SD/HD/3G-SDI,DP1.1, DP1.2, IPC decoding, USB and etc. As for DVI, HDMI, HDMI1.4, HDMI2.0, can edit EDID and can make computer output customized resolution automatically, also can designate one or more output ports output same or different resolution at the same time. Meanwhile, VWC-8000 series support single output port up to 2.6 million pixel (60 Frame)for DVI, HDMI, up to 8.29 million pixel (60 Frame) for HDMI2.0 and DP1.2. They are especially designed for LED fine pitch products, which widely used in security monitoring, exhibition & display, transportation, command and control, education, scientific research, administration and other industries.

● Support 4K@60HZ, HDMI2.0、DP1.2 4K input and output
● Brandnew 10Bit/12Bit color wheel engine, single color channel up to 4096 levels,color point to point restoration,the hue transition is more smoother, softer and natural
● Support HDR, render more details in the dark and bright areas of the image to create a high light but not exposure, dark light but not less exposure effect
● Support OSD character overlay function, can add letters or pictures on image
● Support PC, mobile and central control terminal, PC including win7, win8, win8.1, win10, etc.
● Support signal source status monitoring can supervise whether the signal is online in the software
● Support removing black edge and have cut function, can solve the black edge of the input signal and enlarge display of important areas
● Support intelligent resolution mode and output customized
● Support visualization management, including signal source visualization, layout effect visualization, operation visualization
● Support max 256 scenes mode
● Support background content customized, video and picture
● Support EDID management
● Support Genlock multiple steps cascade
● IPC decode, support main H.264/H.265 and other protocol video stream input
● Support group screen management
● Support Dual power backup
