VWC-7000-XU

    支持网页控制

    支持4K超高清信号采集，提供标准HDMI1.4 30Hz输入接口。

    采用先进的超高清图像处理技术，呈现极为清晰的画面，带来前所未有的视觉体验。

    分类：
      产品描述

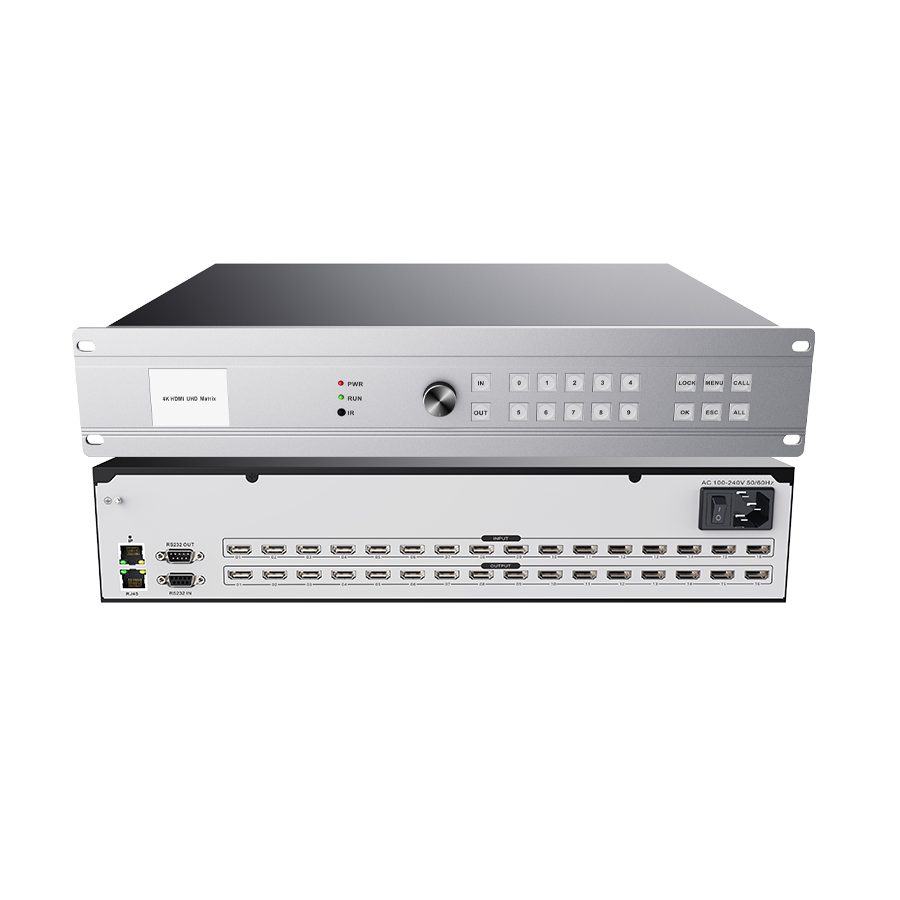

      VWC-7000-XU是一款高性能HDMI矩阵切换器，无需任何操作系统。 它采用大容量高速FPGA阵列和CrossPoint数据路由交换的处理机制，提供高质量的信号图像和实时视频。 得益于基于硬件的结构，具有极高的稳定性，启动速度快，支持365×24小时不间断稳定运行。 可广泛应用于安防监控、展览展示、军事指挥、教育科研、政府公告、商业展示等行业。

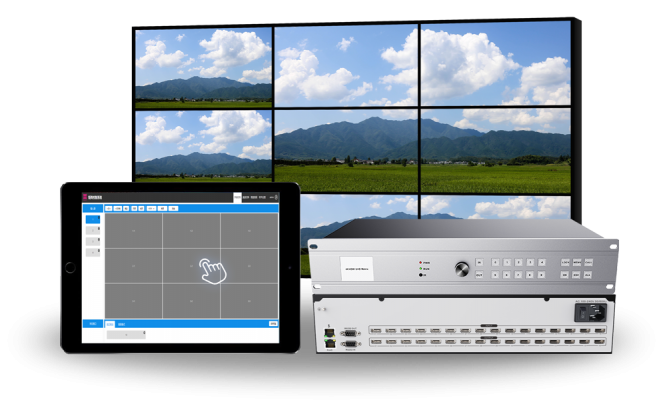

      内设网页控制 无需安装

      支持WEB控制/支持跨平台控制，无需安装任何客户端软件，支持网页登陆控制，支持大屏开关机、拼接/单屏切换控制、支持拼接屏场景联动切换。

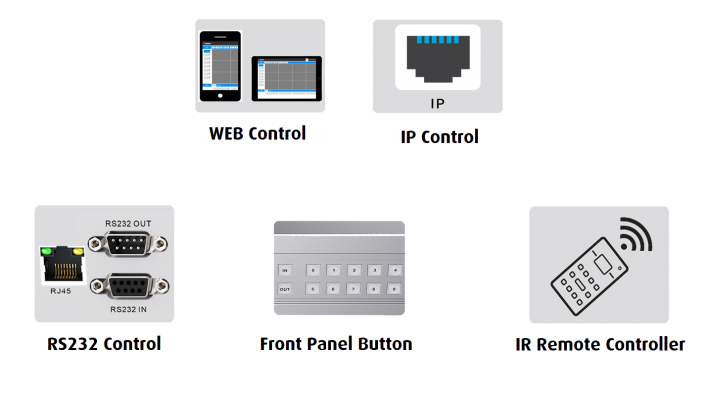

      5种控制方式

      多元化控制方式，支持红外遥控，支持WEB控制，支持按键控制，支持RS232串口控制，支持局域网连接控制。

      产品特点

      Key features:

      • Maximum 16 displays with 2RU
      • Maximum 16 full HD video sources with 2.5 RU
      • Output mapping on software, no need for fixed cable-to-display correspondence
      • Seamless switching between sources
      • 4K HDMI up to 3840×2160 resolution
      • Embedded HDMI audio from any source can be routed to each HDMI output
      • Automatic detection of input signals indicates the I/O status on the control software
      • Built-in matrix switcher function, any source image can be routed to any display
      • Supports the pre-operation mode to avoid possible wrong operation
      • Web Brower control via cross-platform from Windows, iOS, MacOS, Android, Linux and others
      • Total 32 preset modes to be recalled in future
      • User-defined name for screen,channel,software
      • Full color OSD LCD menu display on front panel
      型号对比
      ModelVWC-7000-1U-0404
      		VWC-7000-1U-0808VWC-7000-2U-0816VWC-7000-2U-1616VWC-7000-2U-1632
      Input4xHDMI8xHDMI8xHDMI16xHDMI16xHDMI
      Output4xHDMI8xHDMI16xHDMI16xHDMI32xHDMI
      Chassis1RU1RU2RU2RU2RU
      ControlFront Panel/RS232/WEB BrowserFront Panel/RS232/WEB BrowserFront Panel/RS232/WEB BrowserFront Panel/RS232/WEB BrowserFront Panel/RS232/WEB Browser
      RS2329600, 8-bit, 1 stop bit, no parity (default), 2=TX, 3=RX, 5=GND9600, 8-bit, 1 stop bit, no parity (default), 2=TX, 3=RX, 5=GND9600, 8-bit, 1 stop bit, no parity (default), 2=TX, 3=RX, 5=GND9600, 8-bit, 1 stop bit, no parity (default), 2=TX, 3=RX, 5=GND9600, 8-bit, 1 stop bit, no parity (default), 2=TX, 3=RX, 5=GND
      ResolutionsUp to 3840x2160@30HzUp to 3840x2160@30HzUp to 3840x2160@30HzUp to 3840x2160@30HzUp to 3840x2160@30Hz
      Power
      Supply      		110V AC ~ 240V 50/60Hz110V AC ~ 240V 50/60Hz110V AC ~ 240V 50/60Hz110V AC ~ 240V 50/60Hz110V AC ~ 240V 50/60Hz
      Storage
      Temperature      		-20°C ~ +60°C-20°C ~ +60°C-20°C ~ +60°C-20°C ~ +60°C-20°C ~ +60°C
      Working
      Temperature      		0°C ~ 50°C0°C ~ 50°C0°C ~ 50°C0°C ~ 50°C0°C ~ 50°C
      Working
      Humidity      		5% ~ 75%5% ~ 75%5% ~ 75%5% ~ 75%5% ~ 75%
      Weight2.55KG2.55KG4.35KG4.35KG4.35KG
      连线图表

      资料下载
      VWC-7000-XU Brochure_EN.pdf (下载5 )
      视频演示

      16x16 Switcher Demo
