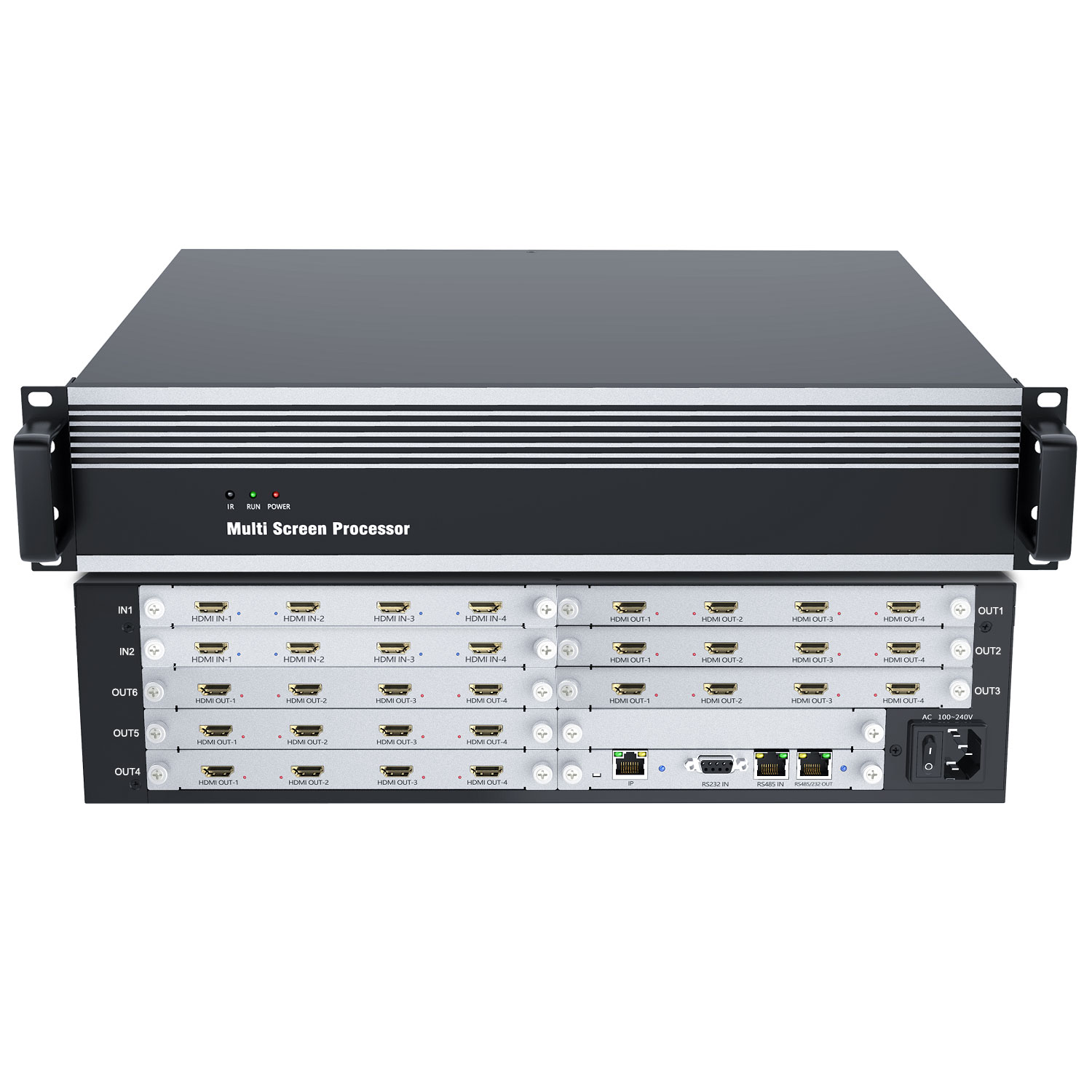

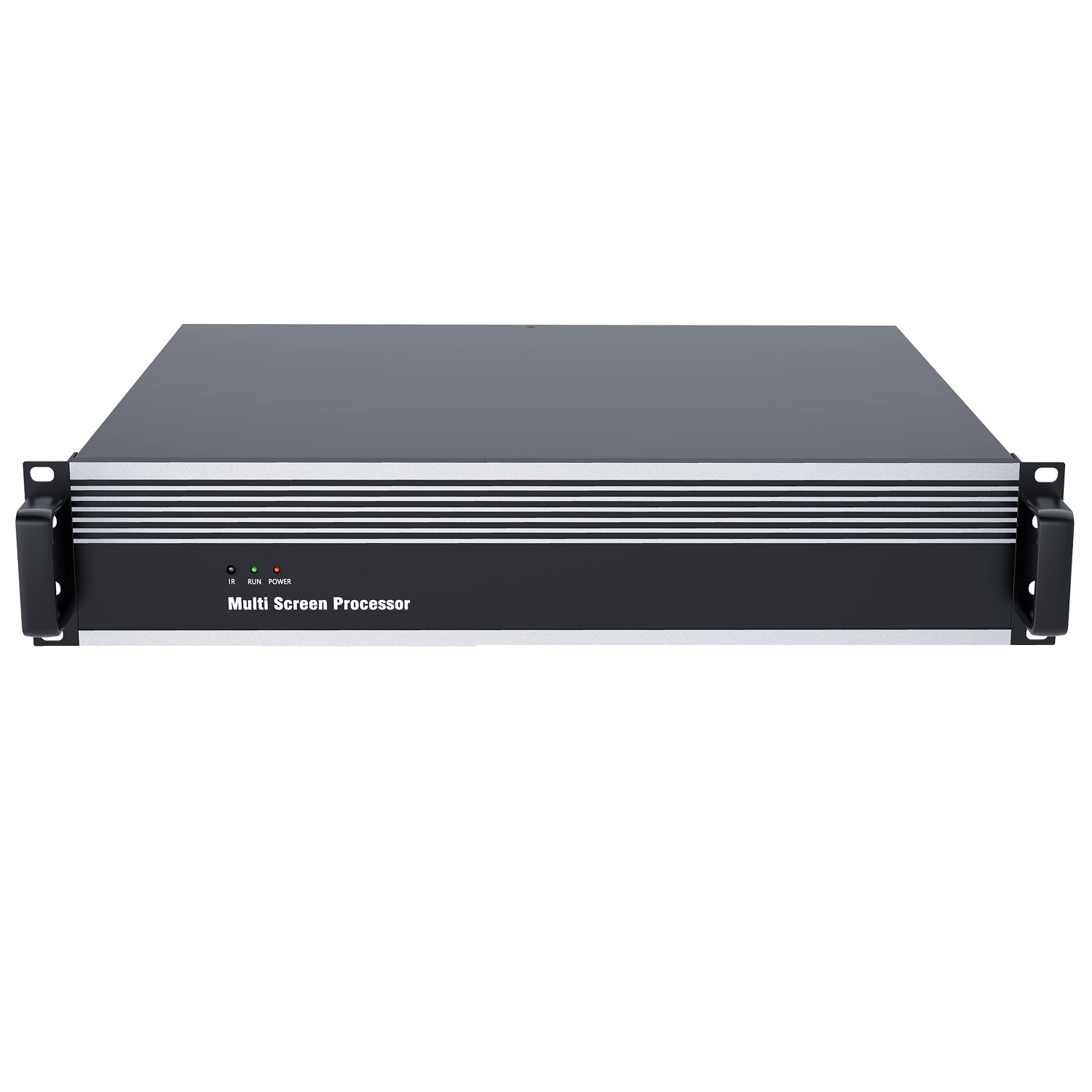

VWC-2000-2U

VWC-2000-2U is a high-performance video processing server without any operating system. It delivers high quality signal images and real-time video as it adopts large-capacity high-speed FPGA array and processing mechanism of CrossPoint data routing and exchange. Thanks to its hardware-based structure, it features extremely high stability, fast startup speed and supports 365×24 hours of uninterrupted and stable operation. It can be widely used in security monitoring, exhibitions, military command, education and scientific research, government announcements, commercial displays and other industries.

Key features:

• Maximum 144 displays with 15 RU
• Maximum 144 full HD video sources with 15 RU
• Side-by-side, overlap, and picture in picture image positioning
• Max 4 layers per screen
• Output mapping on software, no need for fixed cable-to-display correspondence
• Seamless switching between sources
• Arbitrary cropping and content enlargement for the input image
• 4K HDMI up to 3840×2160 resolution
• Embedded HDMI audio from any source can be routed to each HDMI output and 3.5mm audio output
• Automatic detection of input signals indicates the I/O status on the control software
• Built-in matrix switcher function, any source image can be routed to any display
• Supports the pre-operation mode to avoid possible wrong operation
• Total 32 preset modes to be recalled in future

Optional functions:

•  DVI I/O board available
• OSD text on HDMI input source
• Vector subtitle display board
• Web Brower control via cross-platform from Windows, iOS, MacOS, Android, Linux and others
  Bezel compensation for displays
• Free easy-to-use configuration and control software
• HDMI, DVI, VGA, CVBS, SDI, IP, DP, YPbPr, HDBaseT, Optical Fiber inputs
• HDMI, DVI, VGA, CVBS, SDI, HDBaseT, Optical Fiber outputs
• Visualization preview for video wall from the software
• 2/4 input ports option to save cost
• Push multiple web pages, videos, pictures and other media resources onto video wall, and all media
  resources can be displayed on a single screen or spliced to achieve point-to-point uncompressed display
• IP stream real-time decoding, support H.265, ONVIF, RTSP and other network streaming media protocols,
  compatible with mainstream brands of network cameras (IPC), NVR, video streaming servers, etc.; a single
  network port supports up to 64 channels of D1, 32 Channel 720P, 16 channels 1080P, 4 channels 4K decoding.
• Support mobile phone, tablet computer, laptop screen mirroring push function.
• Support redundant power supply, one normal power supply and one backup power supply. If the normal
  power supply fails, it will automatically switch to the backup power supply.
• Built-in Media player for media fiels such as rmvb, avi, mpeg, dat, mov, mkv, wmv, mp3, wma, wav, jpg, gif png;
  and support PDF, dynamic web page, weather, time, scrolling subtitles, etc.
