Tiled LCD panels offer a flexible platform for a variety of 24/7 indoor video wall applications. Available in ultra-narrow and extreme-narrow bezel widths, our range of high-performance LCD products are perfect for control room, meeting rooms, educational facilities, retail spaces and more.
46寸拼接单元

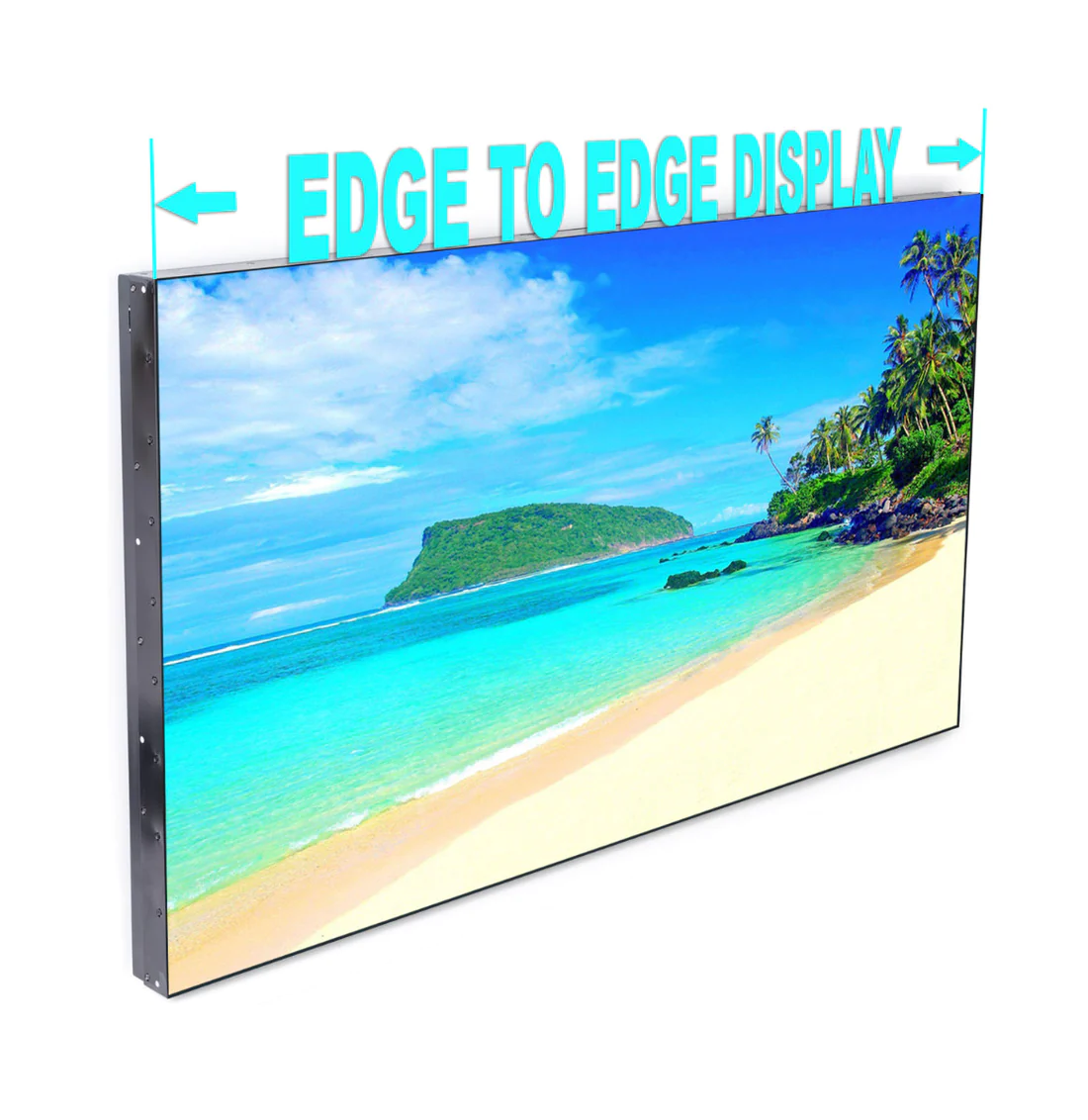

- Ultra-narrow 1.75mm bezel / frame (3.5mm total with multiple displays)
- High Performance 500cd/m Brightness Native resolution up to 1920×1080, viewing angle up to 178°.
- Built-in 3D noise reduction technology Embedded 3D color separation unit.
- High reliability, support non-stop work for 24 hours, suitable to use as monitor.
- Flicker free, less radiation, less heat release, no lead, mercury and other harmful substances.
- Particular block design supports multiple art combination.
- Low power consumption, standby <3W
- Integrated multi-channel video signal source, support HDMI, DVI, CVBS
产品描述
规格参数
LCD PANEL
| Color temperature | 10000K |
| Resolution (H x V) – Single Display | 1920p X 1080p |
| Multi Scree Resolution | Up to 3840×2160@60Hz when using multiple displays (example 2×2 video wall can support 4k image) |
| Aspect ratio | 16:9 |
| Contrast(Typical) | 1900-05-2420:01 |
| Display colors | 16.7M(8bit) |
| Response time(typical) | 8ms |
| View angle | ≥50,000hours |
INTERFACE
| HDMI output | 1x HDMI interface input, support 1080P |
| DVI | 1x DVI digital signal input, support 1080P |
| USB | For software updating, HD base map function |
| RS232 | A serial port ring out controls A, adopt 568B standard |
| RS232 | A serial port ring out controls computer |
POWER SUPPLY
| AC Power range | 100V-240V |
| Working temperature | 0~50℃ |
| Working humidity | 10~90% RH |
ACCESSORIES
| Power cable | YES |
| Remote control | YES |
| Mounting Bracket Spacers | YES |
